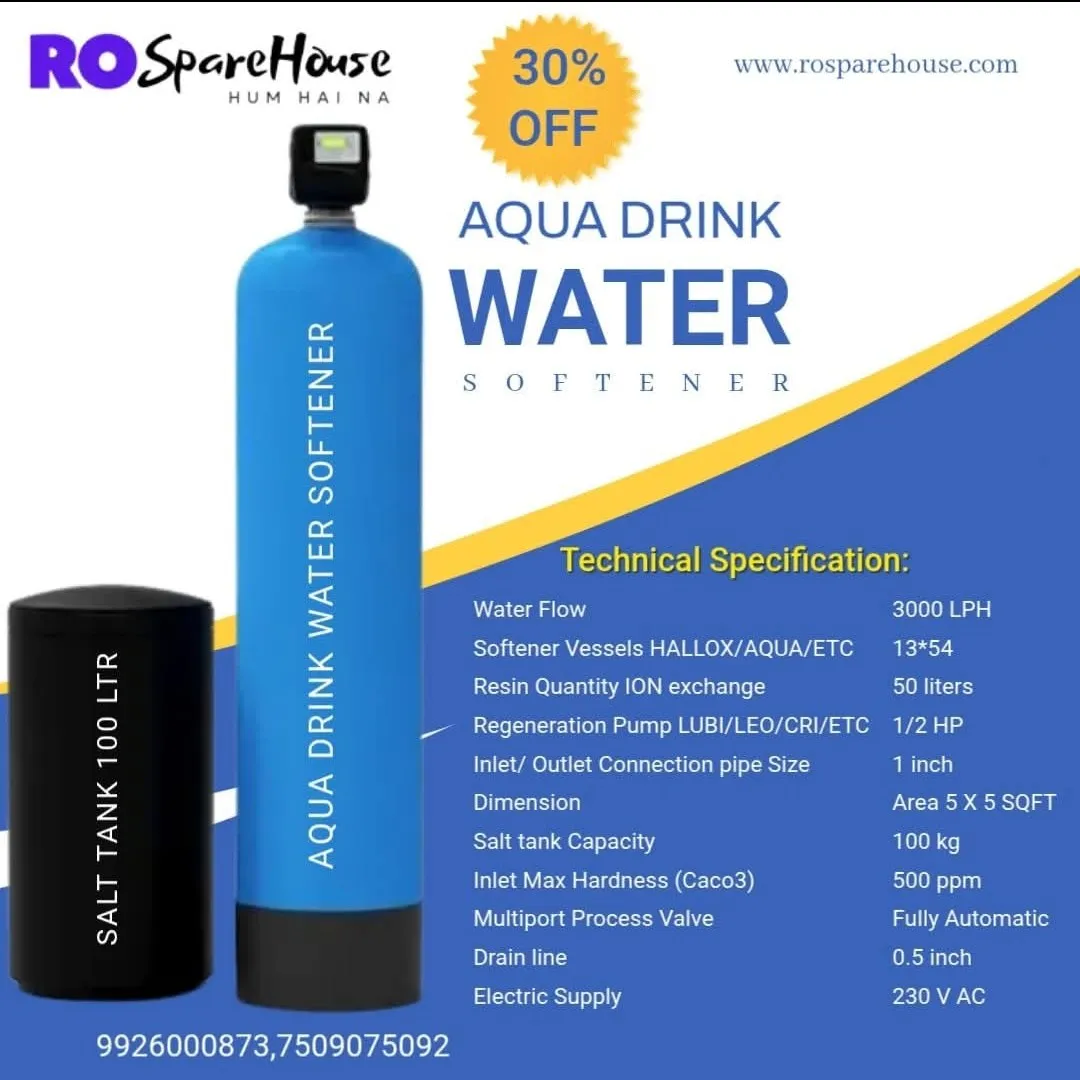

Aqua drink water softener
A water softener operates through a process called ion exchange. It removes hard minerals like calcium and magnesium from your water supply by replacing them with sodium ions. This prevents scale buildup in your pipes and appliances while making soap lather better.
The Core Components
A standard water softener system consists of two main parts:
- The Resin Tank (Mineral Tank): The tall tank filled with millions of tiny, negatively charged polystyrene resin beads. The Brine Tank: A shorter tank kept next to the mineral tank that holds salt (or potassium chloride) and water.
The Softening Process (Ion Exchange)
- Hard water enters: Untreated water flows into the resin tank from the top and filters down through the bed of resin beads.
- Ion swap: The resin beads naturally hold a negative charge and are coated with sodium ions. As the hard water passes over them, the calcium and magnesium minerals (which are positively charged) are drawn to the beads and stick to them.
- Release: The beads displace the calcium and magnesium, releasing sodium into the water in their place. The newly softened water then travels up a central tube and flows out into your home’s plumbing.
The Regeneration Cycle (Cleaning & Recharging)
Over time, the resin beads become completely saturated with hard minerals and can no longer soften the water. The system triggers a multi-stage regeneration cycle
- Backwash: The system reverses the flow of water, pushing it upwards through the resin beads. This expands the bead bed and flushes out any trapped dirt or sediment down the drain.
- Brine Draw: The system draws the highly concentrated saltwater (brine) from the brine tank and flushes it slowly over the resin beads. The sheer volume of sodium in the brine forces the hard minerals to detach from the beads and go down the drain, while the resin recharges with new sodium ions.
- Rinse: Fresh water flows through the tank to wash away any leftover brine and displaced minerals.
- Refill: The system adds a precise amount of water to the brine tank to dissolve the salt and create a new batch of brine for the next cleaning
